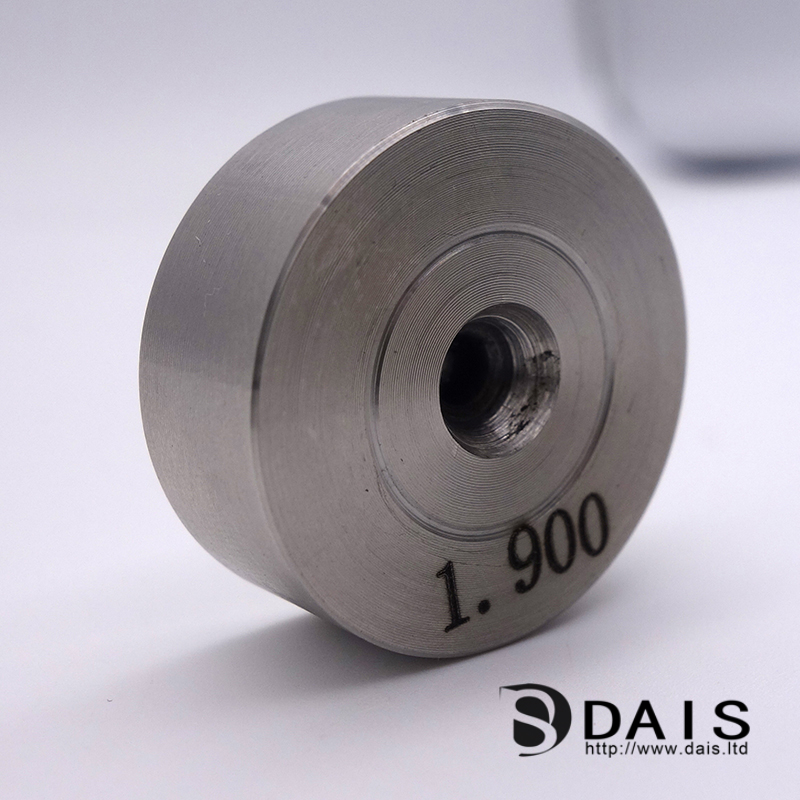

1.90mm PCD Diamond Wire Drawing Die For Silver Wire....
message boardWhatsApp| For enameled wire ,copper wire,aluminium wire , copper clad aluminium wire , golden wire,silver wire and other non-ferrous metal wire | |
| Standard control | |
| Project | Standard |
| Entrance angel | 30±5° |
| Reduction angle | 16°±2° |
| Bearing length | 20%-50%D |
| Ovality | ≤1um |
| Exit angle | 50°±20° |
| Back relief | 15°±5° |
| Recommend to use ND die ,PCD die for multi head wire drawing machine | |
| Specification（steel wire , iron wire , spring wire ,welding wire） | |
| Entrance | 45°±10° |
| Working angle | ±1° |
| Bearing length | 30%-50% |
| Reduction angle | 12°-16° |
| Ellipticity | ≤0.002mm |
| Exit angle | 60°±5° |
| No. | Hole | CD | Case | Tolerance |
| DAISCDF-2510 | 0.10-0.20 | 2. 5*1. 0 | 25*9 | ±0. 001 |
| DAISCDF-3215 | 0.21-0.40 | 3. 2*1. 5 | 25*9 | ±0.001 |
| DAISCDF-4020 | 0.41-0.60 | 4*2 | 25*9 | ±0. 001 |
| DAISCDF-5030 | 0.61-1.00 | 5*3 | 28*13 | ±0.003 |
| DAISCDF-6040 | 1.01-1.50 | 6*4 | 30*14 | ±0. 003 |
| DAISCDF-8040 | 1.51-2.00 | 8*4 | 32*16 | ±0. 003 |
| DAISCDF-9853 | 2.01-2.25 | 9*5 | 40*26 | ±0. 003 |
| DAISCDF-10*6 | 2.26-2.50 | 10*6 | 40*26 | ±0. 003 |
| DAISCDF-12*6 | 2.51-2.75 | 12*6 | 40*26 | ±0. 003 |
| DAISCDF-13*8 | 2.76-3.50 | 13*8 | 40*27 | ±0. 003 |
| DAISCDF-14*10 | 3.51-4.50 | 14*10 | 40*28 | ±0. 003 |
| DAISCDF-16*10 | 4.51-5.00 | 16*10 | 40*28 | ±0. 003 |
| DAISCDF-18*10 | 5.01-6.00 | 18*10 | 45*28 | ±0. 003 |
| DAISCDF-20*12 | 6.01-8.00 | 20*12 | 45*28 | ±0. 005 |
| DAISCDF-22*14 | 8.01-10.00 | 22*14 | 60*35 | ±0. 005 |
| DAISCDF-25*16 | 10.01-13.00 | 25*16 | 60*38 | ±0. 005 |
| DAISCDF-30*20 | 13.01-16.00 | 30*20 | 70*42 | ±0. 005 |
| DAISCDF-40*25 | 16.01-20.00 | 40*25 | 80*45 | ±0. 005 |
