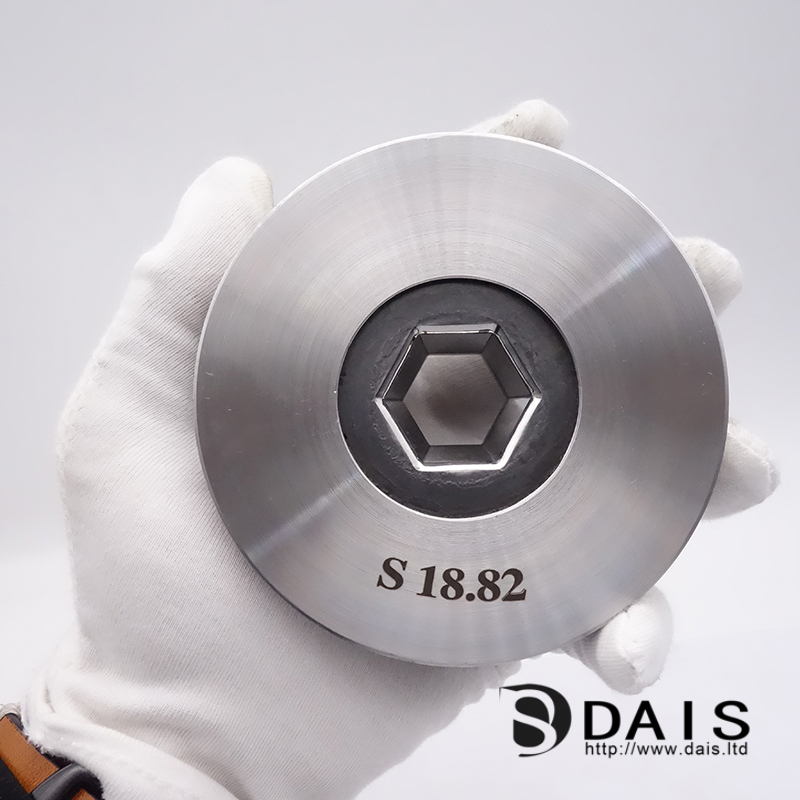

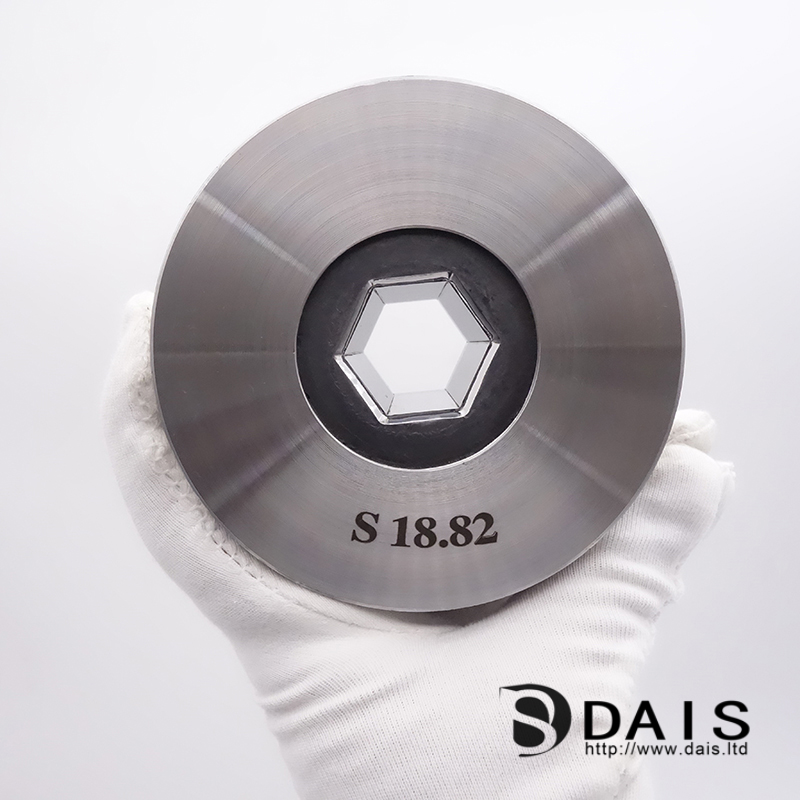

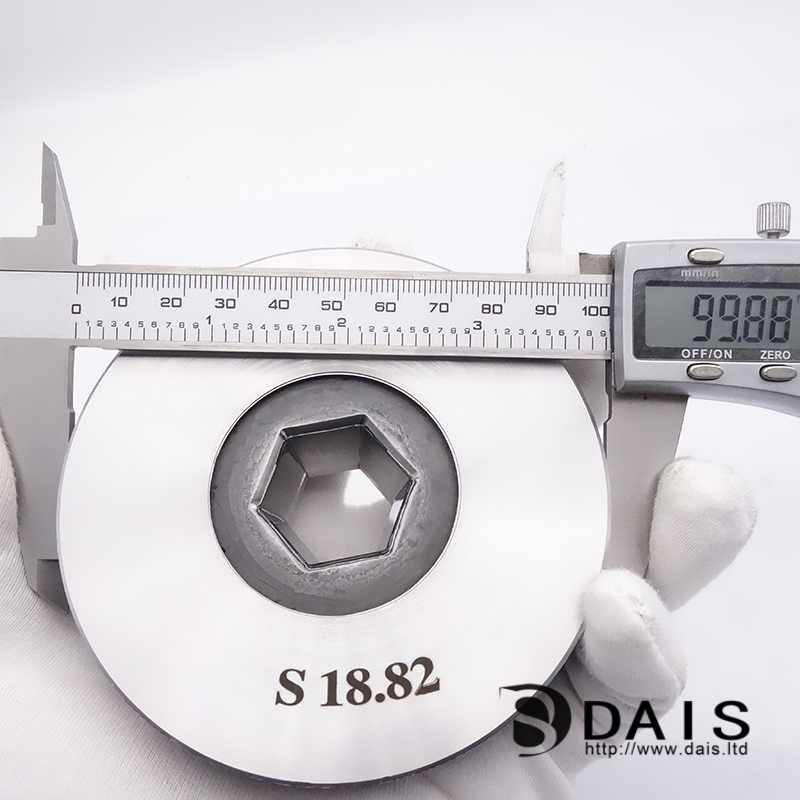

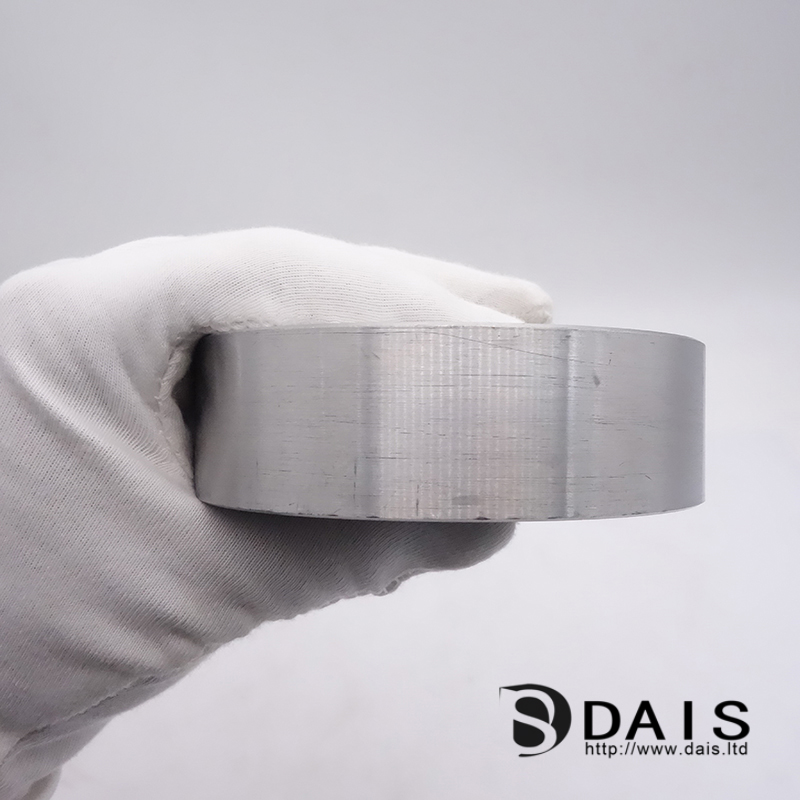

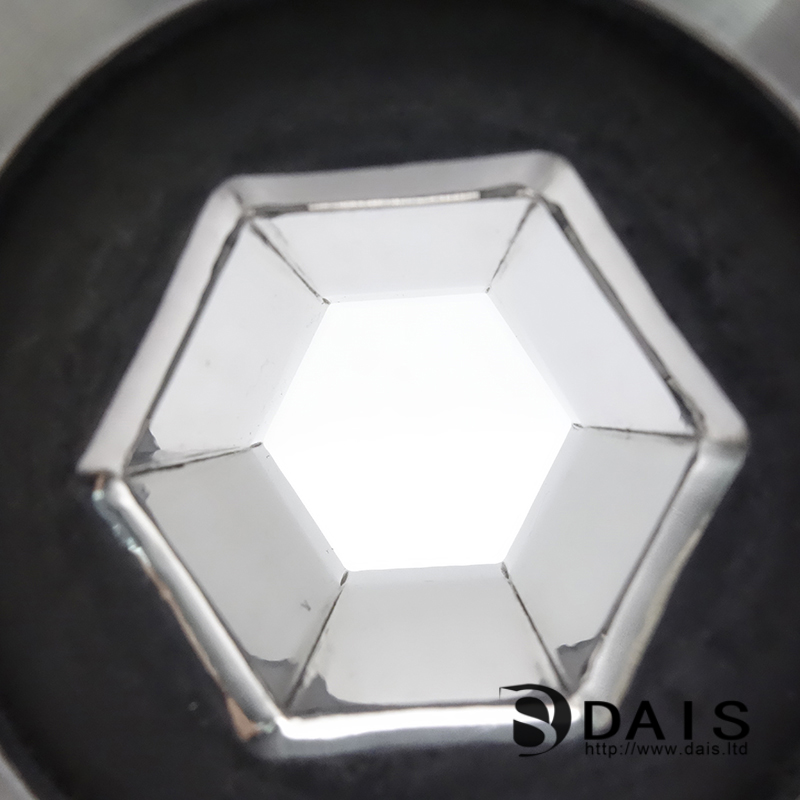

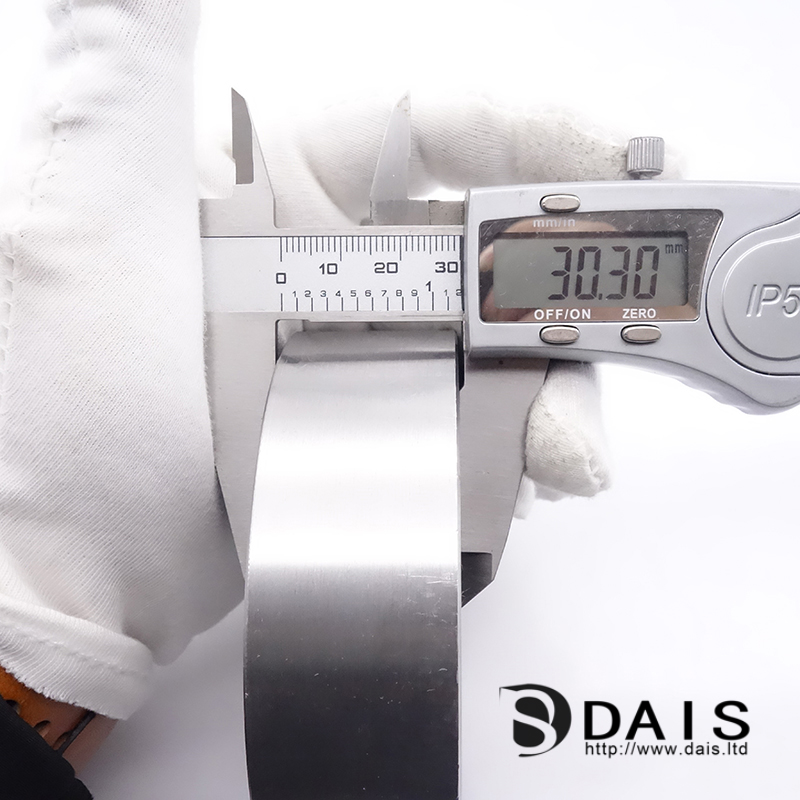

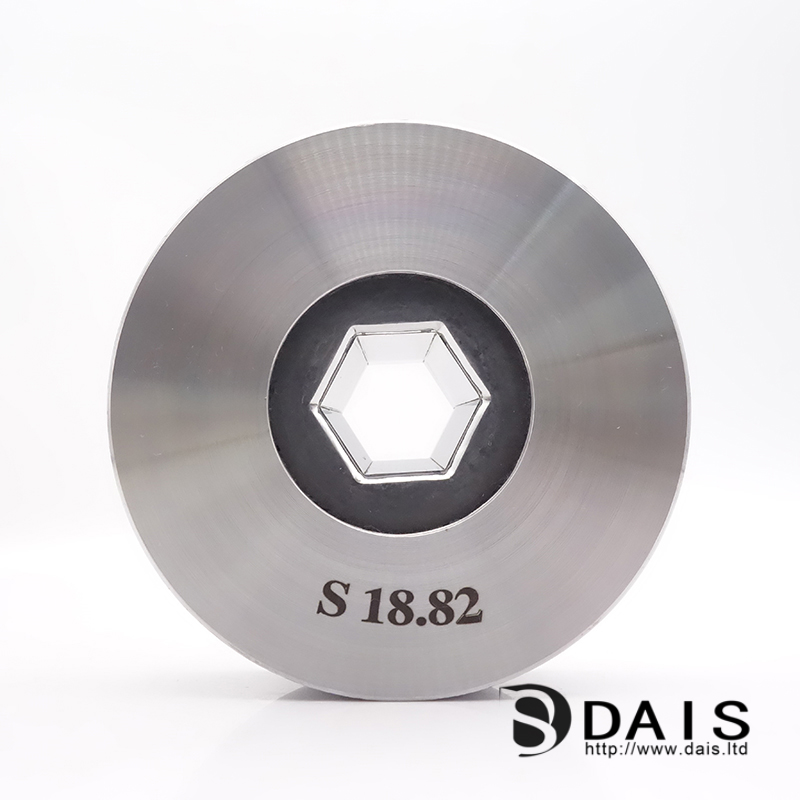

18.82mm Hexagon Tungsten carbide (TC) die....
message boardWhatsAppCarbide die,tungsten carbide die
Recommend to make metal wire & bar .
Feature:high hardness ,Good thermal conductivity,Small coefficient of friction,Anti-corrosion
| Item | Hole | Nib | Tolerance | Case |
| DAISYL-3021 | 2. 5—8. 0 | 30X21 | ±0. 005 | 60X35 |
| DAISYL-3521 | 8.01—11.0 | 35X21 | ±0. 005 | 70X35 |
| DAISYL-4025 | 11. 01—14. 0 | 40X25 | ±0. 005 | 80X42 |
| DAISYL-4525 | 14. 01—19. 0 | 45X25 | ±0. 005 | 90X42 |
| DAISYL-5528 | 19. 01—24. 0 | 55X28 | ±0. 005 | 110X50 |
| DAISYL-6530 | 24. 01—29. 0 | 65X30 | ±0. 005 | 120X55 |
| DAISYL-7535 | 29. 01—38. 0 | 75X35 | ±0. 005 | 140X63 |
| DAISYL-9035 | 38. 01—49. 0 | 90X35 | ±0. 005 | 160X70 |
| DAISYL-10040 | 49. 01—59. 0 | 100X40 | ±0. 005 | 200X70 |
| DAISYL-12042 | 59. 01—75.0 | 120X42 | ±0. 005 | 220X75 |
Customized hole shape
