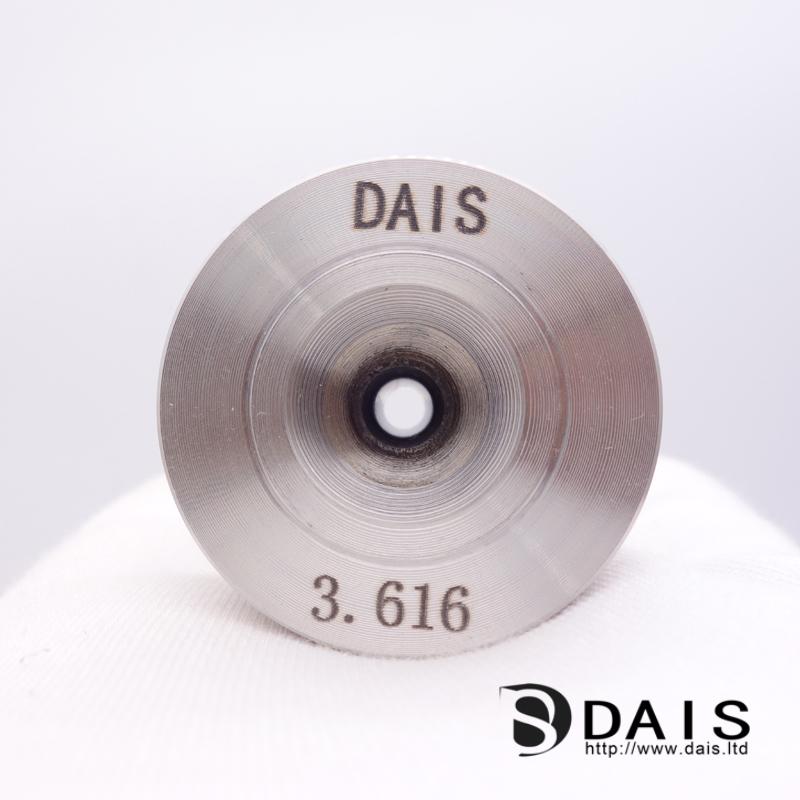

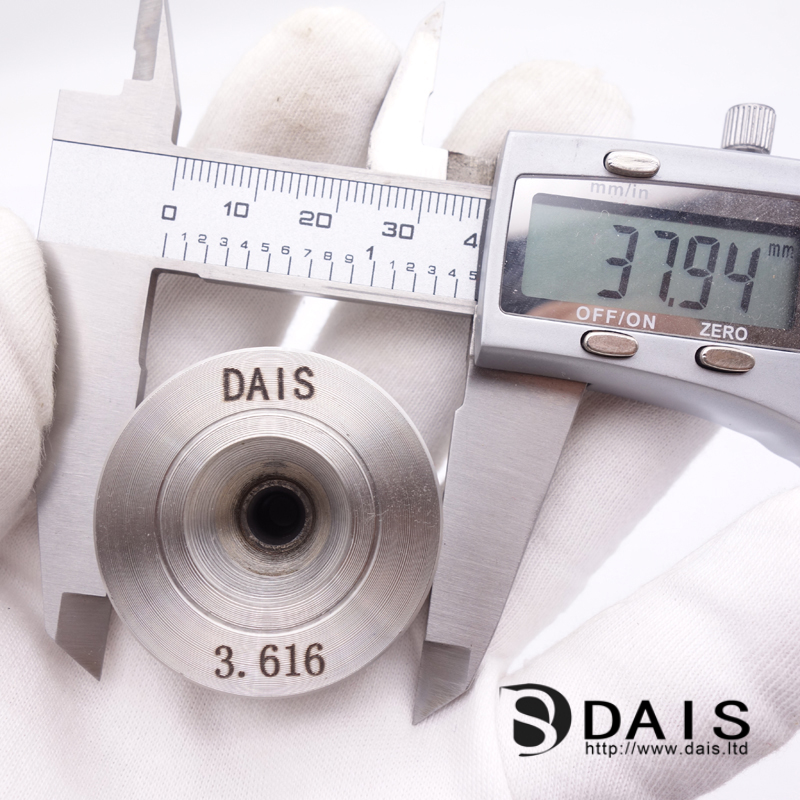

3.616mm High Crystal PCD Wire Drawing Die....
message boardWhatsApp| For enameled wire ,copper wire,aluminium wire , copper clad aluminium wire , golden wire,silver wire and other non-ferrous metal wire | |
| Standard control | |
| Project | Standard |
| Entrance angel | 30±5° |
| Reduction angle | 16°±2° |
| Bearing length | 20%-50%D |
| Ovality | ≤1um |
| Exit angle | 50°±20° |
| Back relief | 15°±5° |
| Recommend to use ND die ,PCD die for multi head wire drawing machine | |
| Specification（steel wire , iron wire , spring wire ,welding wire） | |
| Entrance | 45°±10° |
| Working angle | ±1° |
| Bearing length | 30%-50% |
| Reduction angle | 12°-16° |
| Ellipticity | ≤0.002mm |
| Exit angle | 60°±5° |
| No. | Hole | High crystal PCD | Case | Tolerance |
| DAISGT-0503 | 1.00-1.50 | 5X3 | 28X13 | ±0.003 |
| DAISGT-0604 | 1.51-2.40 | 6X4 | 30X14 | ±0.003 |
| DAISGT-0804 | 2.41-2.70 | 8X4 | 32X16 | ±0.003 |
| DAISGT-0905 | 2.71-2.85 | 9X5 | 35X18 | ±0.003 |
| DAISGT-1006 | 2.86-3.00 | 10X6 | 40X26 | ±0.003 |
| DAISGT-1206 | 3.01-3.90 | 12X6 | 40X26 | ±0.003 |
| DAISGT-1308 | 3.91-4.40 | 13X8 | 40X27 | ±0.005 |
| DAISGT-1410 | 4.41-5.00 | 14X10 | 40X28 | ±0.005 |
| DAISGT-1610 | 5.01-6.00 | 16X10 | 40X28 | ±0.005 |
| DAISGT-1810 | 6.01-7.00 | 18X10 | 45X28 | ±0.005 |
| DAISGT-2012 | 7.01-8.00 | 20X12 | 45X30 | ±0.005 |
